The US County Graph
 Click for a larger version. |
We took the publicly available polygon data of the 3141 US counties, threw them into
Mathematica and made them into a graph, the US county graph. Two counties are connected if they share a
common boundary point (this is not quite the official definition but was easier to compute).
The graph has dimension 1047839931/501781280=2.08824 and Euler characteristic v-e+f-c+w=-5 where v=3141 is the number of vertices,
e=9137 the number of edges, f the number of triangles, c the number of tetrahedra and w the number of K5 subgraphs.
The graph is not planar (there are points, where 5 counties meet).
Its close to a geometric graph but taking not positive length borders includes some
tetrahedral and hypertetrahedra subgraphs which increases the dimension slightly. To the right is the vertex distribution:
|
 Click for larger version. |
World Continent Graphs

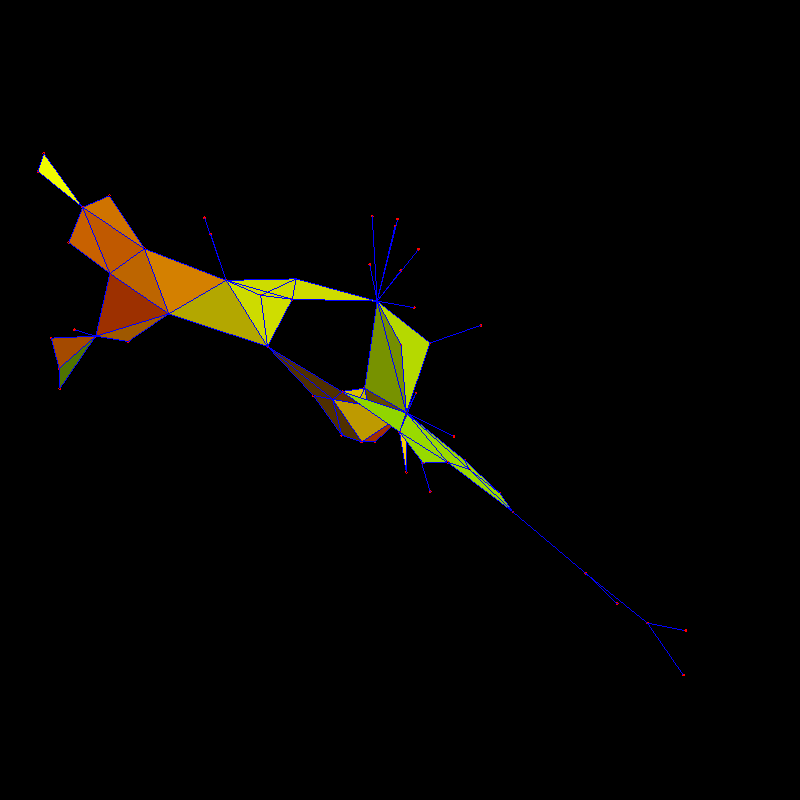

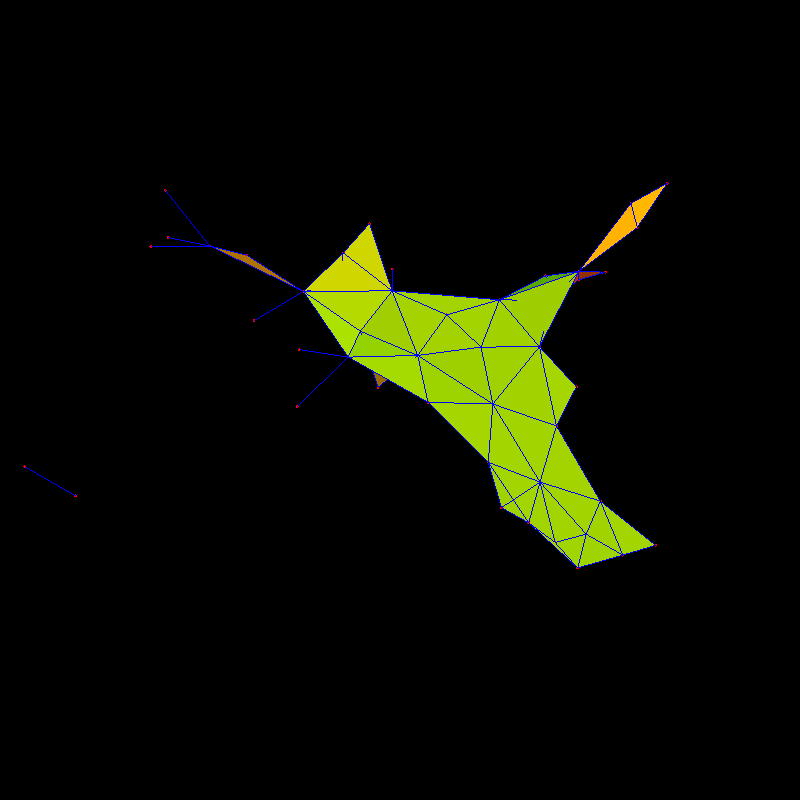

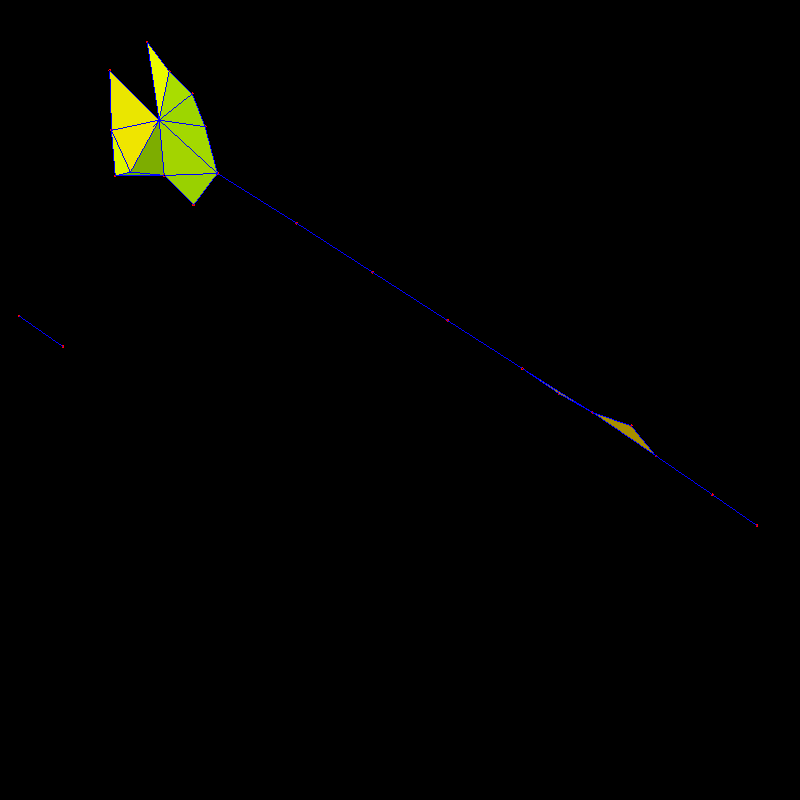

Each vertex is a country. Two vertices are connected if they have a common border. |
 |
| Africa | America |
 |
 |
| Asia | Europe |
World
