Caustic on graph of quartic parabola
Caustic computation
Office: SciCtr 434

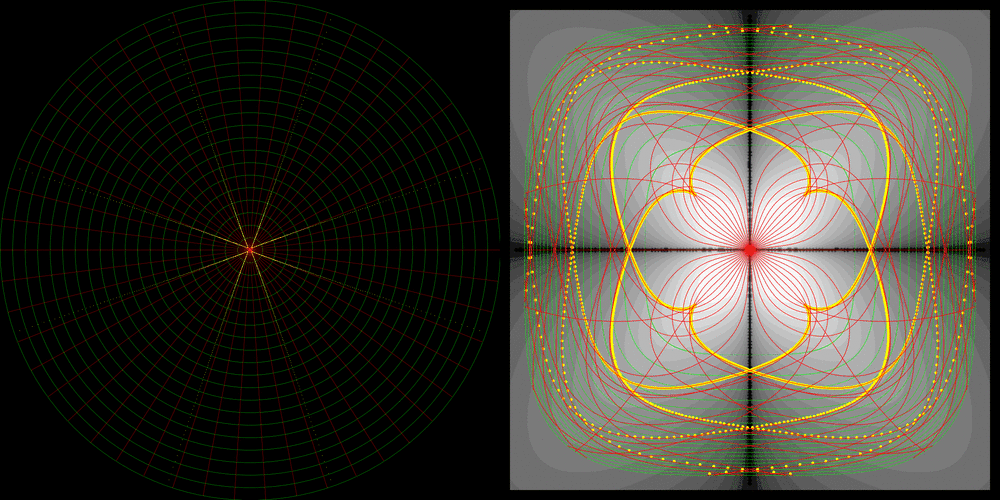

The caustic of a point (a,b) on the surface z=x4 + y4 in geodesic polar coordinates at (a,b) (straight radial lines in this picture are mapped by the exponential map to geodesics on the surface). For each frame of the movie, 20'000 geodesic paths have computed. The caustic looks quite regular in polar coordinates. The caustic of a point (a,b). The point (a,b) changes from frame to frame. The caustic (yellow) for each frame was found by solving the Jacobi differential equation f''+K(g(t)) = 0 along each of the 20'000 geodesics g(t). The computation of this movie was done in Mathematica and took about 2 days.
